层次卷积滤波红外弱小目标检测方法

陈灿灿; 夏润秋; 刘洋; 刘力双; 陈青山

doi:10.5768/JAO202344.0403003

层次卷积滤波红外弱小目标检测方法

doi: 10.5768/JAO202344.0403003

北京信息科技大学仪器科学与光电工程学院，北京 100092

基金项目: 国防军工重点计量科研项目（J*********1）

详细信息

作者简介:
陈灿灿（1995—），女，硕士，主要从事红外图像小目标检测算法研究。E-mail：chencc2580@163.com

中图分类号: TN219
计量
- 文章访问数: 270
- HTML全文浏览量: 191
- PDF下载量: 46
- 被引次数: 0
出版历程
- 收稿日期: 2022-07-18
- 修回日期: 2022-09-09
- 网络出版日期: 2022-09-24
- 刊出日期: 2023-07-15

Hierarchical convolution filtering method for infrared dim small target detection

School of Instrument Science and Opto-electronic Engineering, Beijing Information Science and Technology University, Beijing 100089, China

摘要

摘要: 针对单帧复杂背景红外图像点目标检测算法存在复杂背景下处理效果不理想、处理时间长的问题，提出了一种层次卷积滤波检测算法。主要分为两个部分：第一，根据红外小目标特性，设计一种层次卷积滤波的算子，对图像进行滤波处理，实现图像中小目标的增效和背景抑制的效果；第二，采用基于最大值的自适应阈值方法，对图像进行二值化操作，过滤背景杂波，最终提取到待检测的目标。在大量不同背景红外图像中进行实验，论文算法在背景抑制因子和信噪比增益的性能量化结果上优于现有5种典型红外弱小目标检测算法的性能结果，且平均处理时间仅为高斯拉普拉斯（Laplacian of Gaussian，LoG）滤波算法的30.42%。通过实验对比，表明该层次卷积滤波算法可以有效解决在不同复杂背景下的红外图像中对小目标检测的问题。
- 复杂背景 /
- 红外图像 /
- 红外弱小目标检测 /
- 卷积滤波 /
- 自适应阈值
Abstract: Aiming at the problems of unsatisfactory processing effect and long processing time in point target detection algorithm of single-frame infrared image with complex background, a hierarchical convolution filtering detection algorithm was proposed. It was mainly divided into two parts: firstly, according to the characteristics of small infrared targets, a hierarchical convolution filtering operator was designed to filter the image, so as to achieve the effect of efficiency increase and background suppression of small targets in the image. Secondly, the adaptive threshold method based on the maximum value was used to binarize the image to filter the background clutter, and finally extracted the target to be detected. Experiments in a large number of infrared images with different backgrounds show that the performance quantization results of background suppression factor and signal-to-noise ratio gain of the algorithm are better than that of the existing five typical infrared dim and small target detection algorithms, and the average processing time is only 30.42% of Laplacian of Gaussian (LoG) filtering algorithm. Through the experimental comparison, the hierarchical convolution filtering method can effectively solve the problem of small target detection in infrared images under different complex backgrounds.
- complex background /
- infrared image /
- infrared dim small target detection /
- convolution filtering /
- adaptive threshold

HTML全文

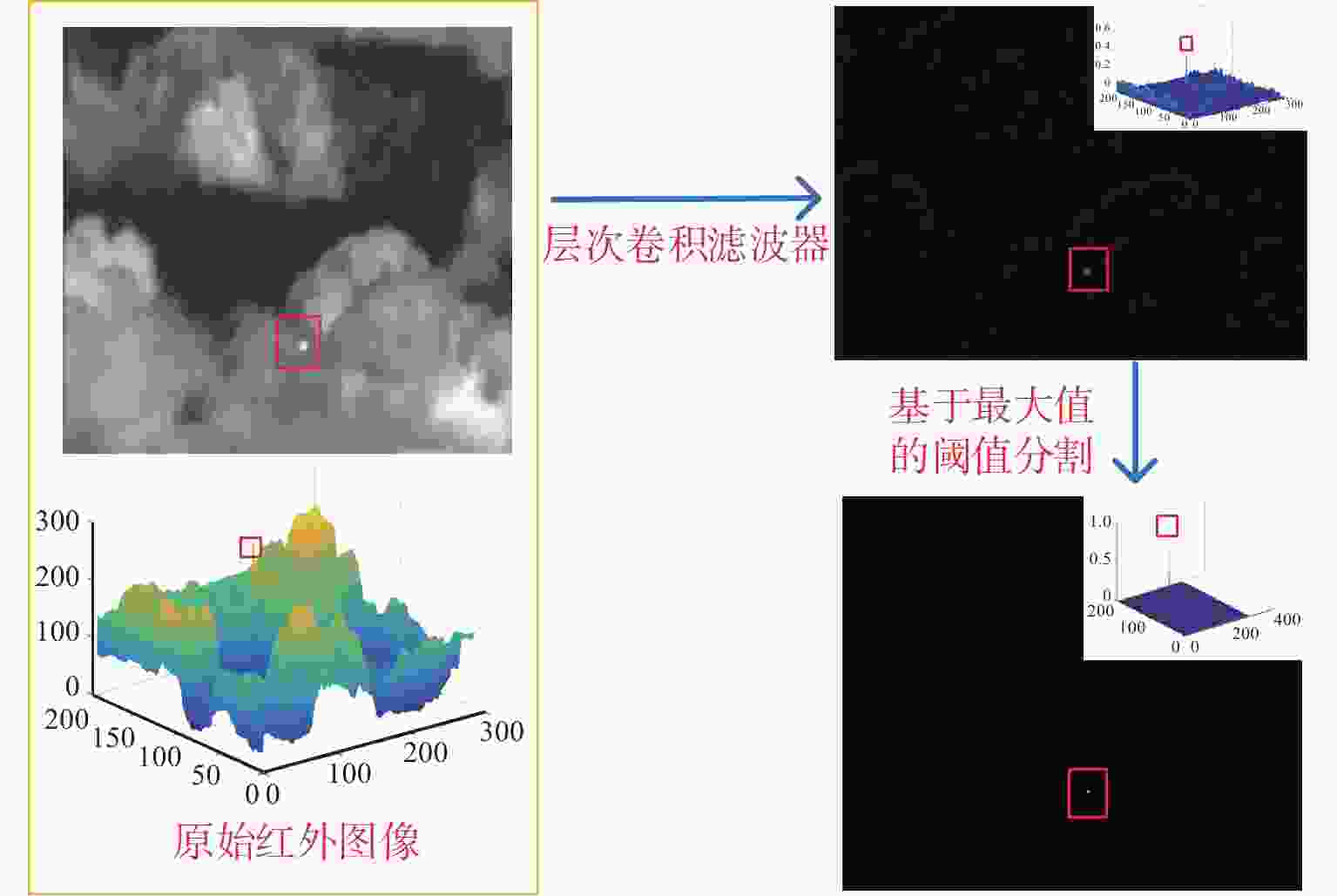

图 1 整体算法流程

Fig. 1 Overall flow chart of algorithm

下载: 全尺寸图片幻灯片

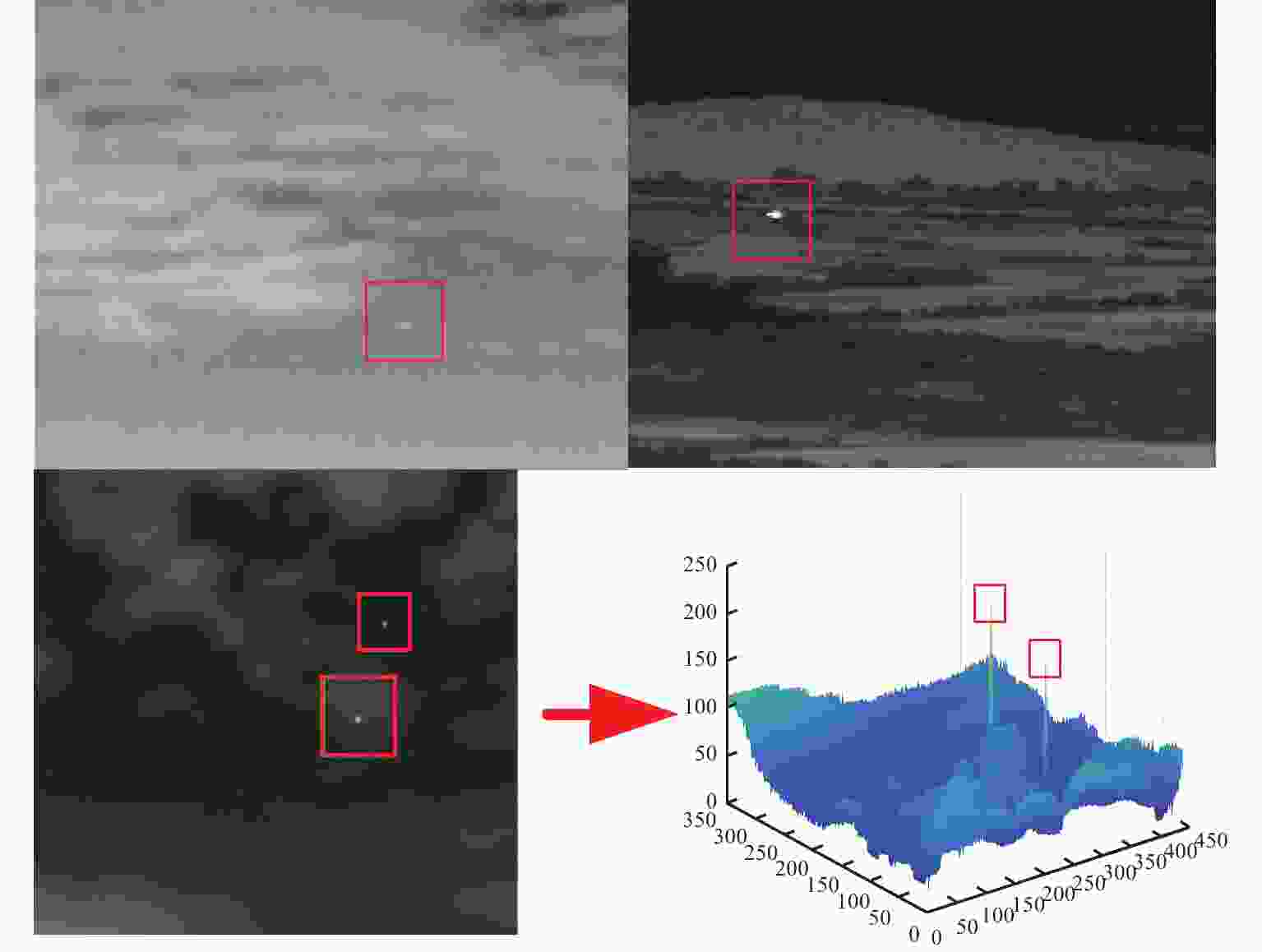

图 2 含有小目标的红外图像

Fig. 2 Infrared image with small targets

下载: 全尺寸图片幻灯片

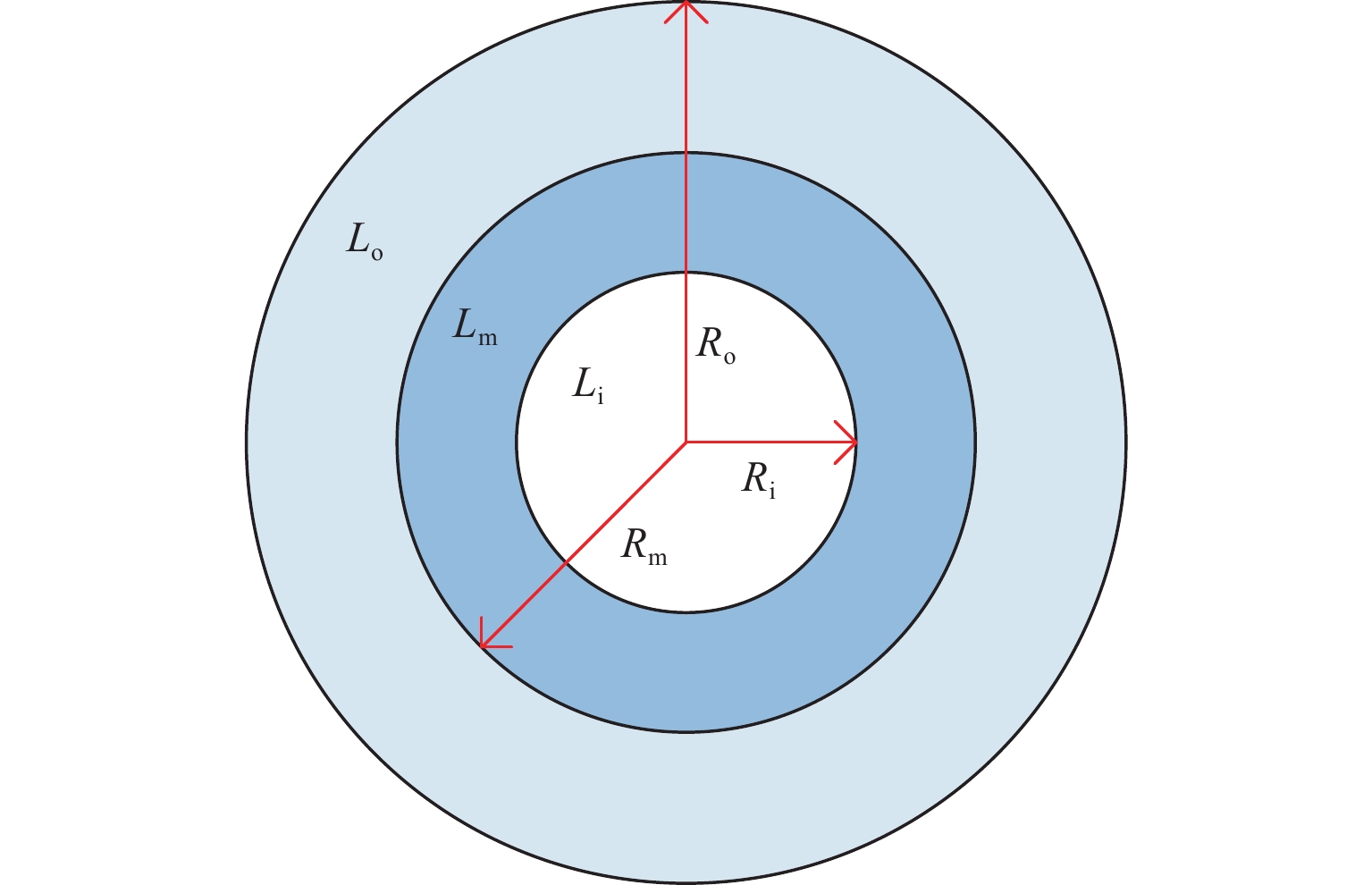

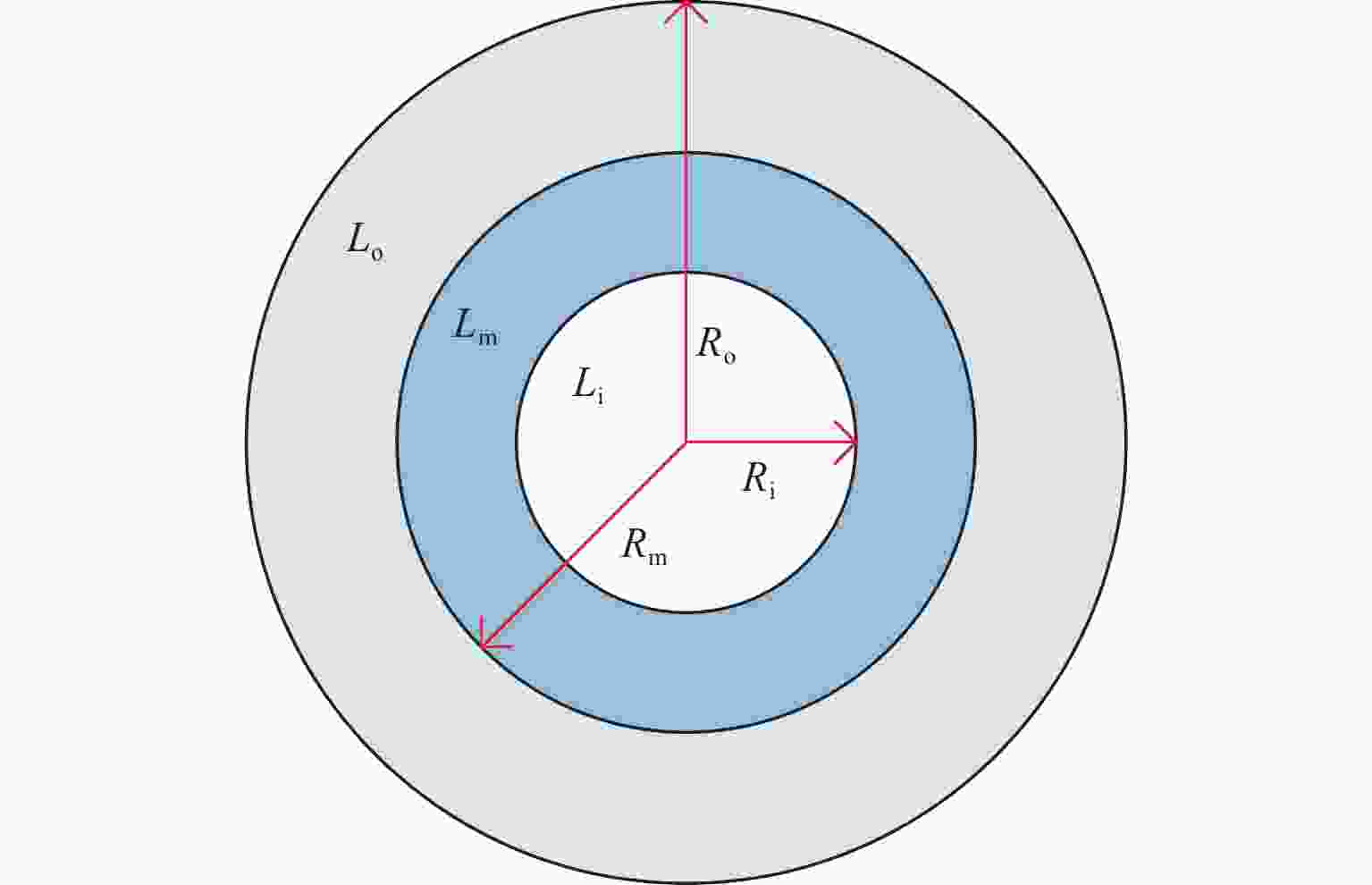

图 3 算子模型介绍

Fig. 3 Introduction of operator model

下载: 全尺寸图片幻灯片

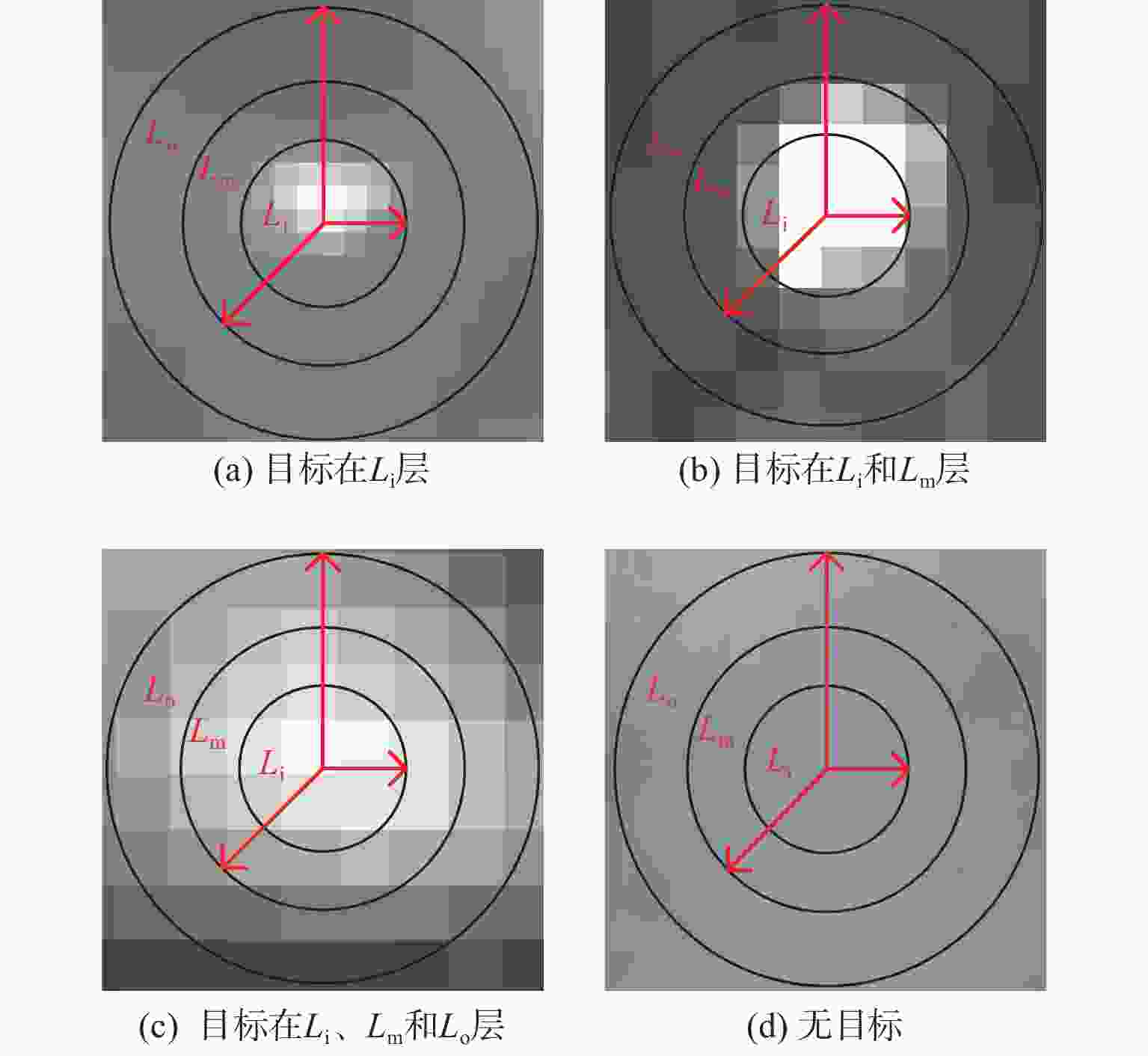

图 4 该算子的不同应用情况

Fig. 4 Different applications of proposed operator

下载: 全尺寸图片幻灯片

图 5 6种算法处理后的单帧图像

Fig. 5 Single-frame images processed by six algorithms

下载: 全尺寸图片幻灯片

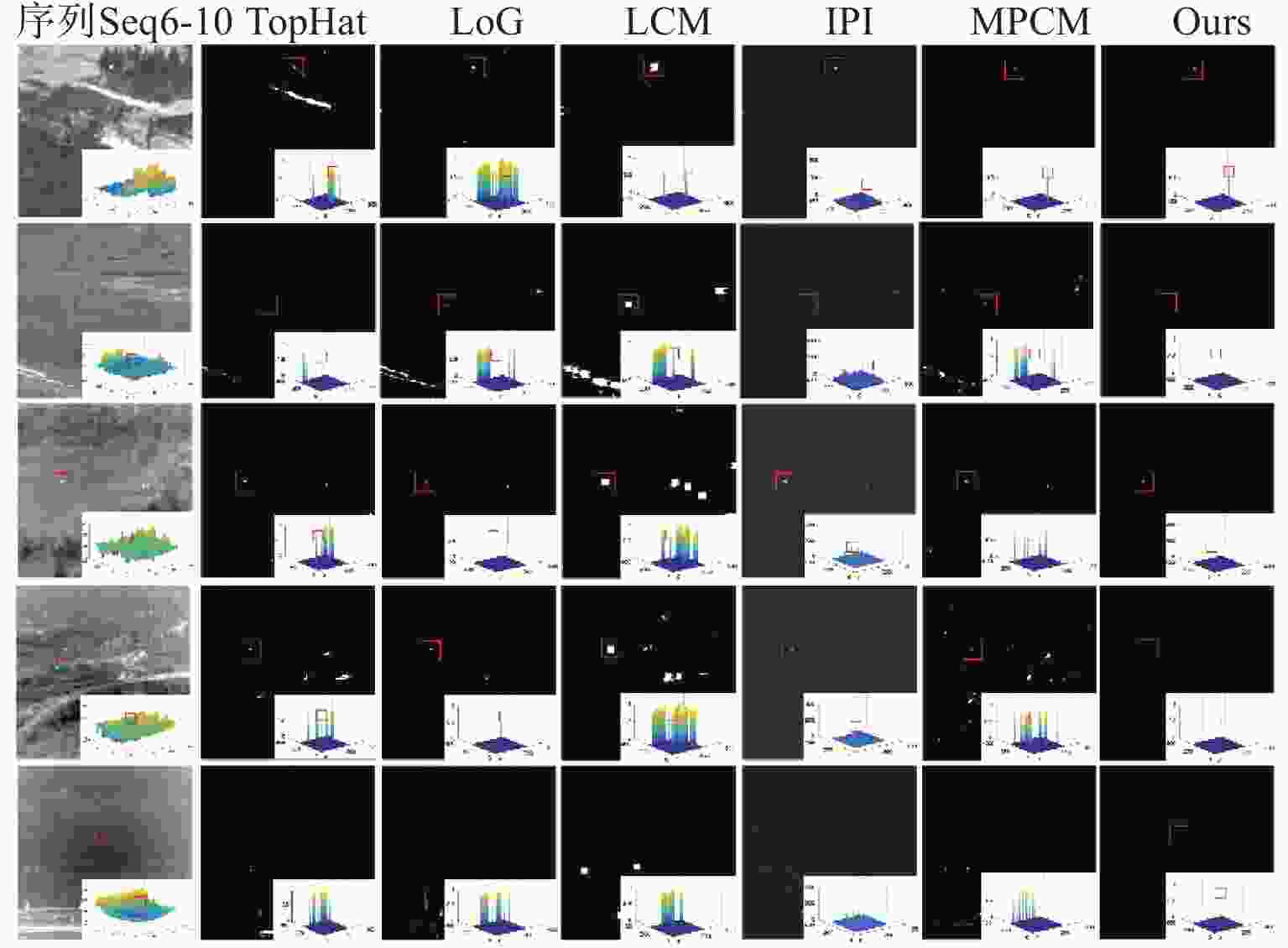

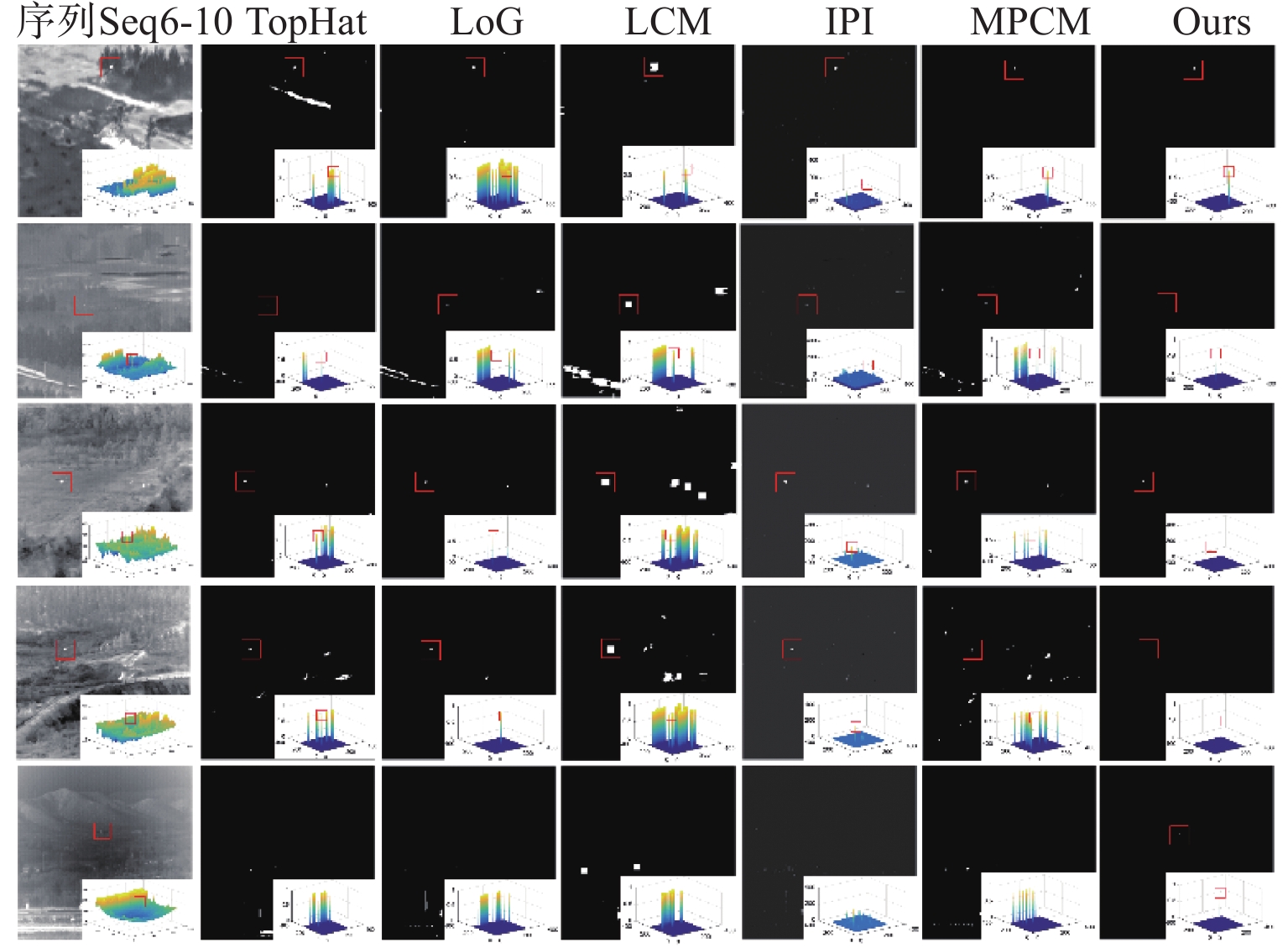

图 6 6种算法处理后的序列图像

Fig. 6 Sequence images processed by six algorithms

下载: 全尺寸图片幻灯片

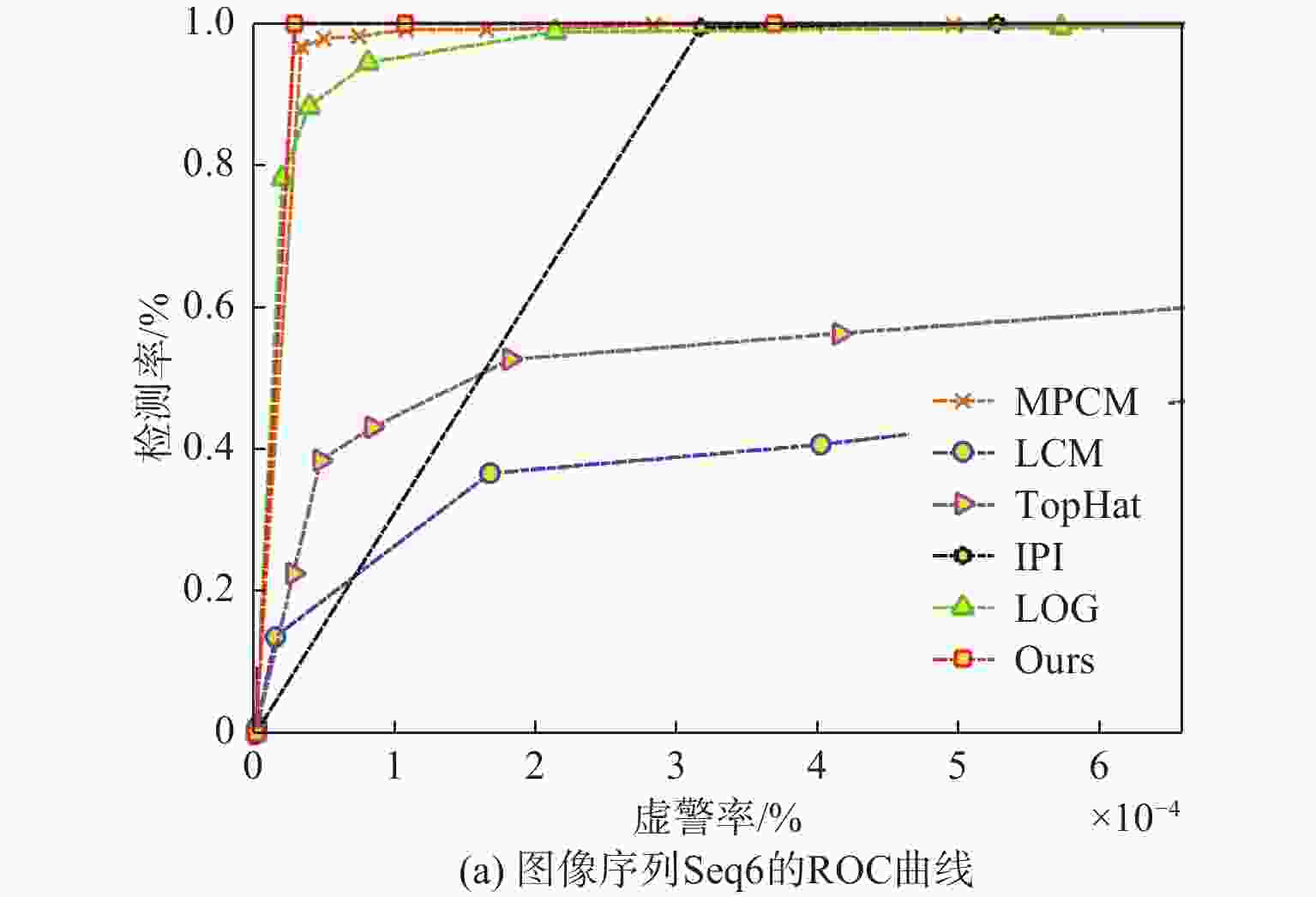

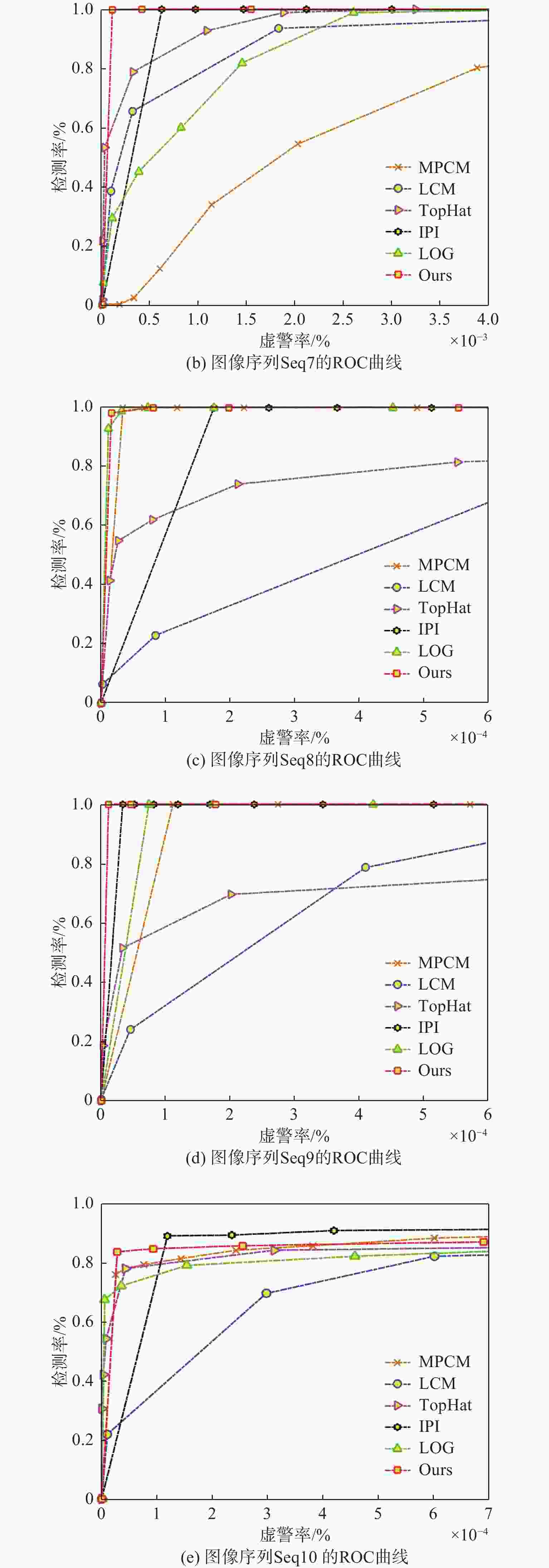

图 8 不同算法的ROC曲线图

Fig. 8 ROC curves of different algorithms

下载: 全尺寸图片幻灯片

表 1 红外序列图像信息

Table 1 Infrared sequence image information

图像序列	帧数	图像大小	目标数量	目标尺寸
Seq.6	325	256×256	1	3×3
Seq.7	597	256×256	1	3×3
Seq.8	266	256×256	1	3×3
Seq.9	276	256×256	1	3×3
Seq.10	290	256×256	1	3×3

下载: 导出CSV

表 2 6种方法在Seq.6~10上的SCRG值比较

Table 2 Comparison of SCRG values of six methods on Seq.6~10

算法	图像序列
算法	Seq.6	Seq.7	Seq.8	Seq.9	Seq.10
TopHat	1 501.57	78.90	0.93	1 062.44	12.55
IPI	24 184.64	332.68	8.66	70.49	19.08
LCM	7 971.7	512.41	4.09	8 441.12	29.78
MPCM	10 099.61	61.68	10.67	10 891.93	55.73
LoG	3 613.22	81.99	2.2	2 967.2	15.06
Ours	30 663	734.65	28.14	16 763.96	57.51

下载: 导出CSV

表 3 6种方法在Seq.6~10上的BSF值比较

Table 3 Comparison of BSF values of six methods on Seq.6~10

算法	图像序列
算法	Seq.6	Seq.7	Seq.8	Seq.9	Seq.10
TopHat	268.01	228.77	265.74	246.53	639.97
IPI	25.19	10.48	10.35	14.87	12.84
LCM	165.27	134.29	173.25	193.29	178.09
MPCM	124.59	327.89	227.86	207.17	563.92
LoG	555.63	421.91	493.86	506.00	1 182.76
Ours	888.35	1 503.29	8 004.54	1 231.68	3 992.90

下载: 导出CSV

表 4 6种方法在Seq.6-10中平均运行时间

Table 4 Average running time of six methods on Seq.6~10 1 s

算法	图像序列
算法	Seq.6	Seq.7	Seq.8	Seq.9	Seq.10
TopHat	0.010 0	0.010 6	0.010 5	0.010 9	0.011 6
IPI	6.925 6	7.152 9	7.287 3	7.041 5	8.189 0
LCM	0.081 5	0.083 0	0.081 4	0.084 2	0.086 0
MPCM	0.068 3	0.068 2	0.066 7	0.068 9	0.068 8
LoG	0.019 2	0.020 7	0.020 6	0.020 0	0.020 9
Ours	0.006 4	0.006 4	0.005 9	0.005 6	0.006 5

下载: 导出CSV
