基于DETR的道路环境下双目测量系统

康轶譞; 刘宇; 王亚伟; 周立君; 郭城; 王怡恬

doi:10.5768/JAO202344.0402003

基于DETR的道路环境下双目测量系统

doi: 10.5768/JAO202344.0402003

西安应用光学研究所智能感知实验室，陕西西安 710065

基金项目: 十四五陆军预研基金（627010402）

详细信息

作者简介:
康轶譞（1995—），男，硕士，助理工程师，主要从事深度学习方面的研究。E-mail：kangyixuan13@163.com

中图分类号: TN29
计量
- 文章访问数: 132
- HTML全文浏览量: 89
- PDF下载量: 14
- 被引次数: 0
出版历程
- 收稿日期: 2022-05-19
- 修回日期: 2022-06-20
- 网络出版日期: 2023-03-27
- 刊出日期: 2023-07-15

DETR-based binocular measurement system in road environment

Intelligent Perception Laboratory, Xi'an Institute of Applied Optics, Xi'an 710065, China

摘要

摘要: DETR（detection transformer）算法是一个基于Transformer的目标检测算法，具有检测速度快、检测效果好的优势。介绍了一种利用DETR算法及双目视觉原理对道路环境下的人、车、自行车、信号灯等目标进行构建的测量系统。分析了双目测距、相机标定、目标检测以及目标匹配的原理，并以此为基础构建了测量系统。采用目标检测算法检测视野中的目标，利用双目视觉原理对检测到的目标进行测距，同时分析了测量系统中测量误差的来源，并计算其对结果的影响。该算法在KITTI数据集及现实环境中进行测试，测量系统基线为45 cm，对15 m～80 m的指定目标检出率高于90.6%，测距误差小于5.8%，在RTX 2080Ti平台上能够实时运行。
- 双目视觉 /
- 目标检测 /
- 测量系统 /
- 测量误差
Abstract: Detection transformer (DETR) is a target detection algorithm based on Transformer, which has the advantages of fast detection speed and good detection effect. A measurement system based on DETR and binocular vision principle for people, vehicles, bicycles, signal lights and other targets in road environment was introduced. The principles of binocular ranging, camera calibration, target detection and target matching were analyzed, and the measurement system was constructed on this basis. The target detection algorithm was used to detect the targets in the field of vision, and the principle of binocular vision was used to measure the distance of the detected targets. The source of measurement error in the measurement system was analyzed and the influence on the results was calculated. The algorithm was tested in KITTI data set and real environment. The system baseline is 45 cm, the detection rate of 15 m~80 m specified targets is higher than 90.6%, and the ranging error is less than 5.8%. The proposed algorithm can run in real time on RTX 2080Ti platform.
- binocular vision /
- target detection /
- measurement system /
- measurement error

HTML全文

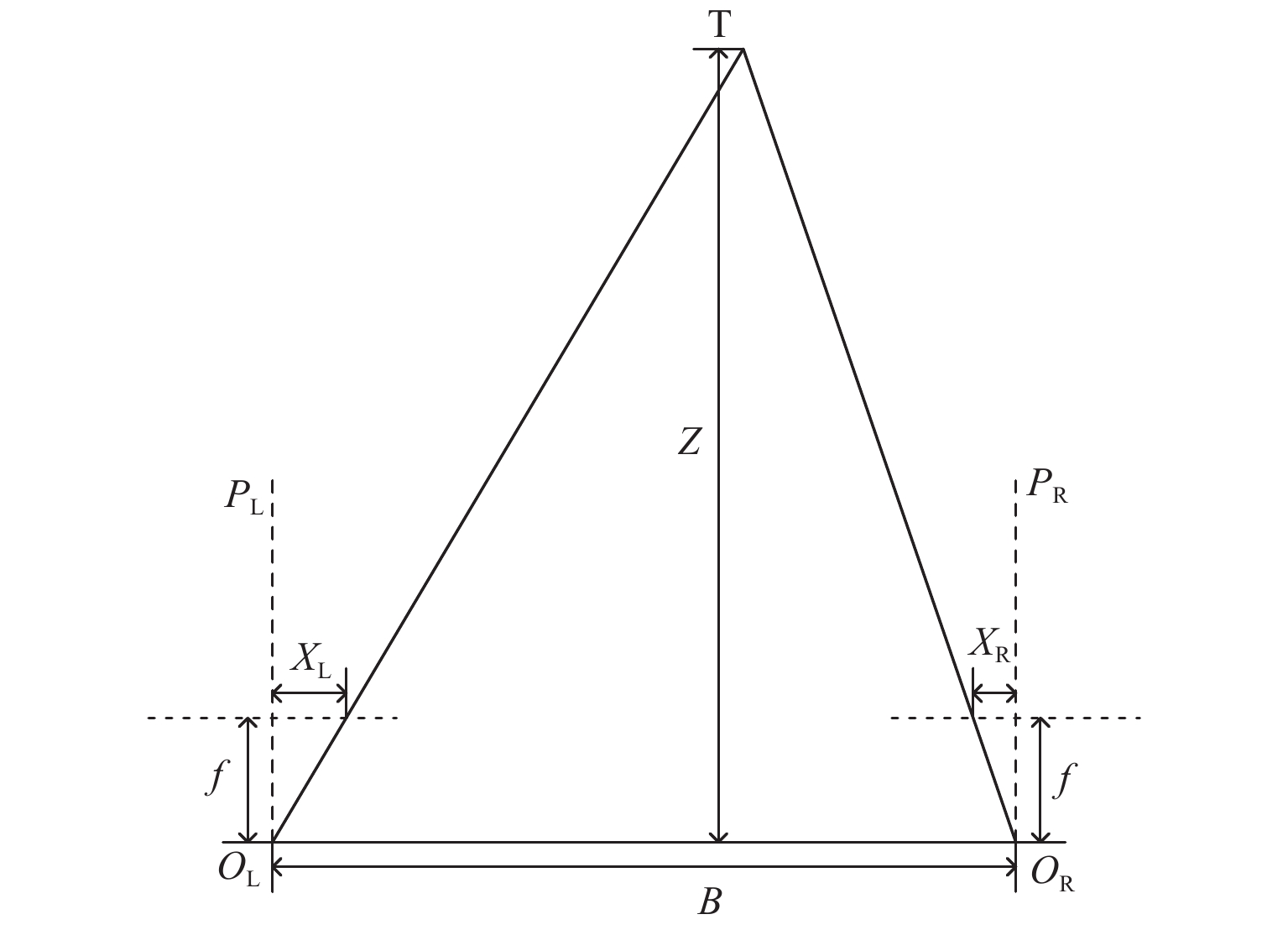

图 1 双目视觉测量系统图

Fig. 1 Diagram of binocular vision measurement system

下载: 全尺寸图片幻灯片

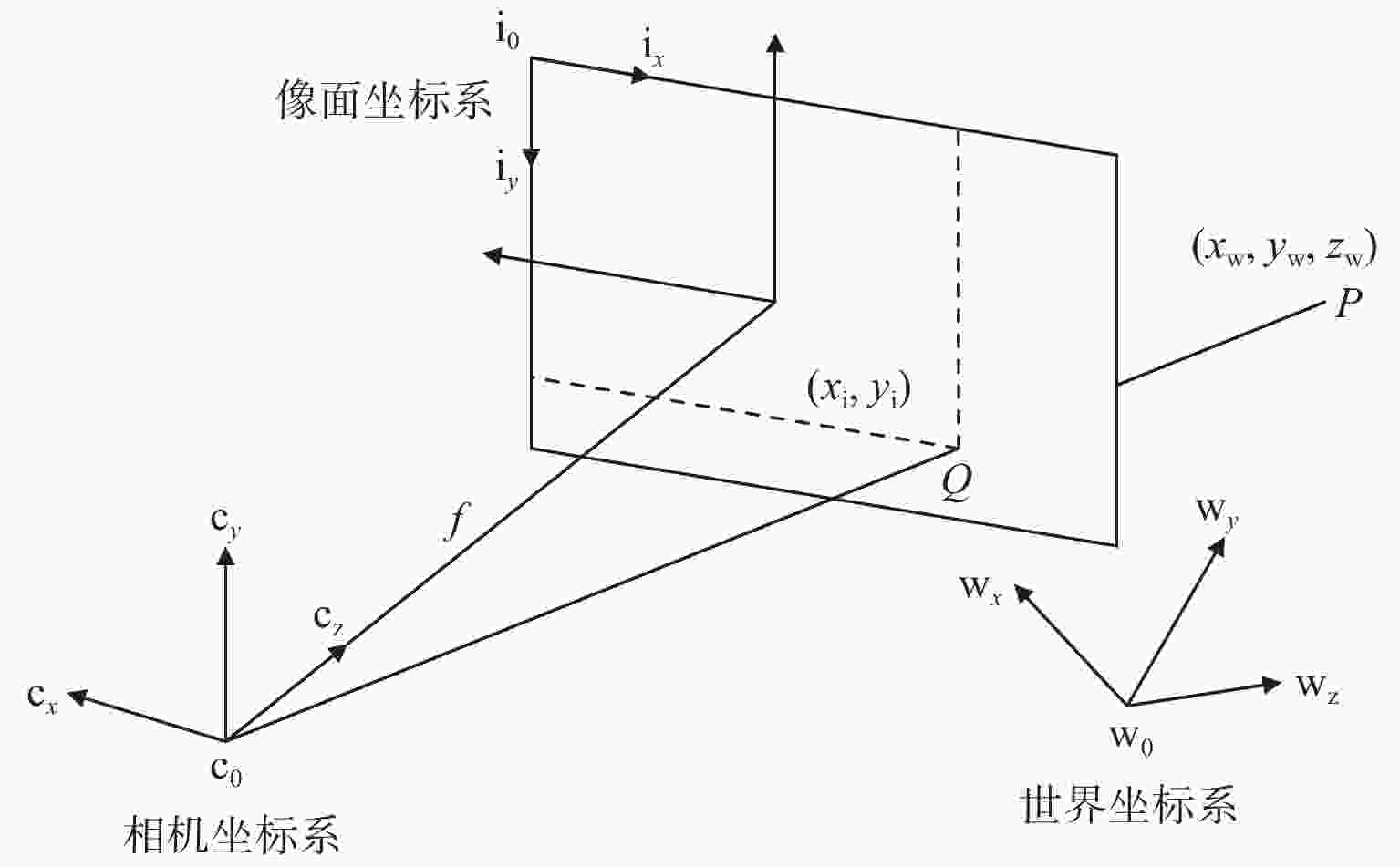

图 2 像面坐标系与真实坐标系的转化图

Fig. 2 Transformation diagram of image plane coordinate system and real coordinate system

下载: 全尺寸图片幻灯片

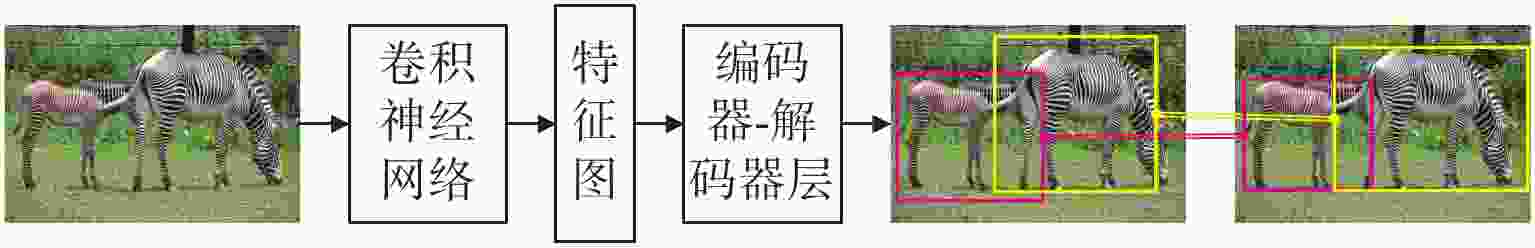

图 3 DETR算法结构图

Fig. 3 Structure diagram of DETR algorithm

下载: 全尺寸图片幻灯片

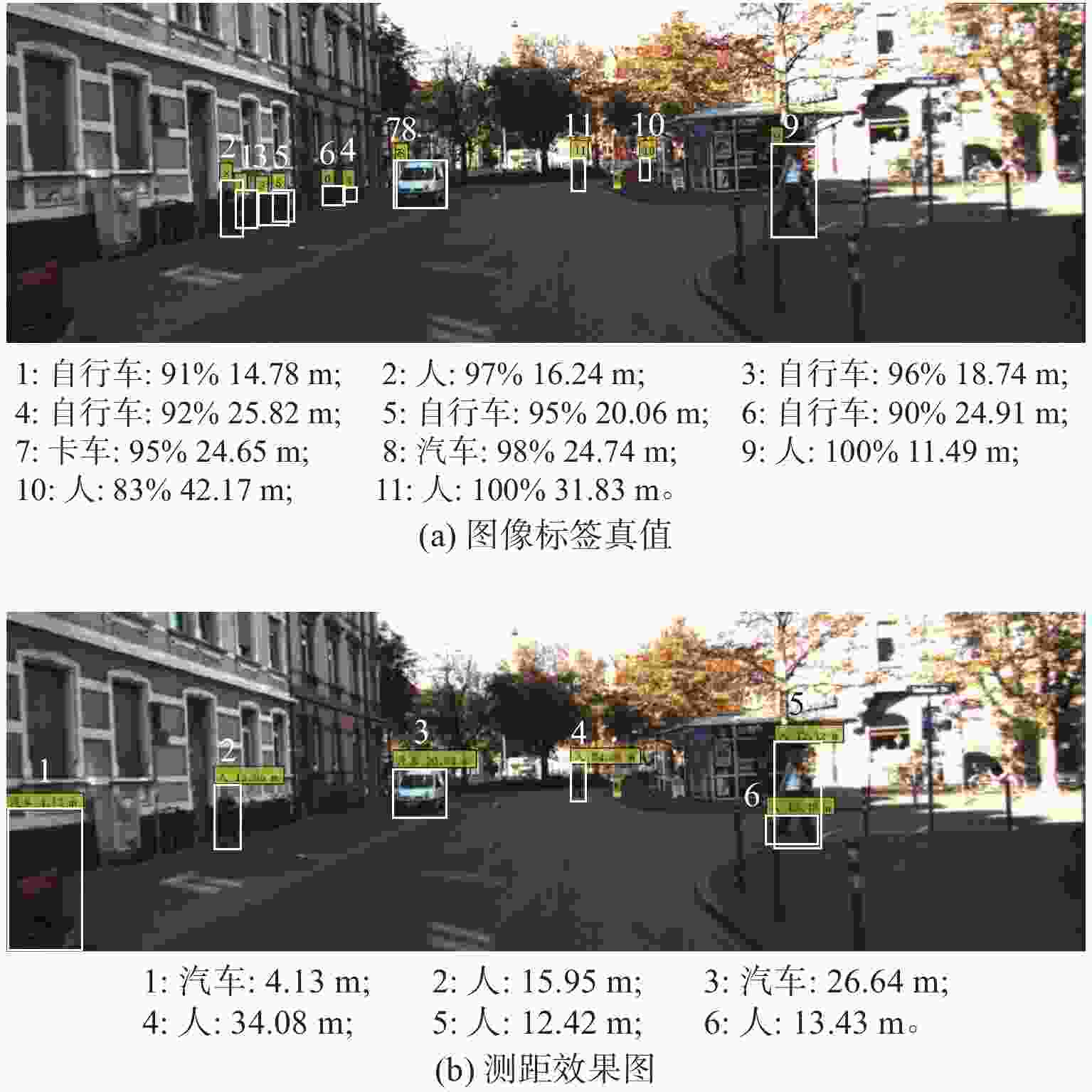

图 4 KITTI数据集测试结果

Fig. 4 Test results of KITTI dataset

下载: 全尺寸图片幻灯片

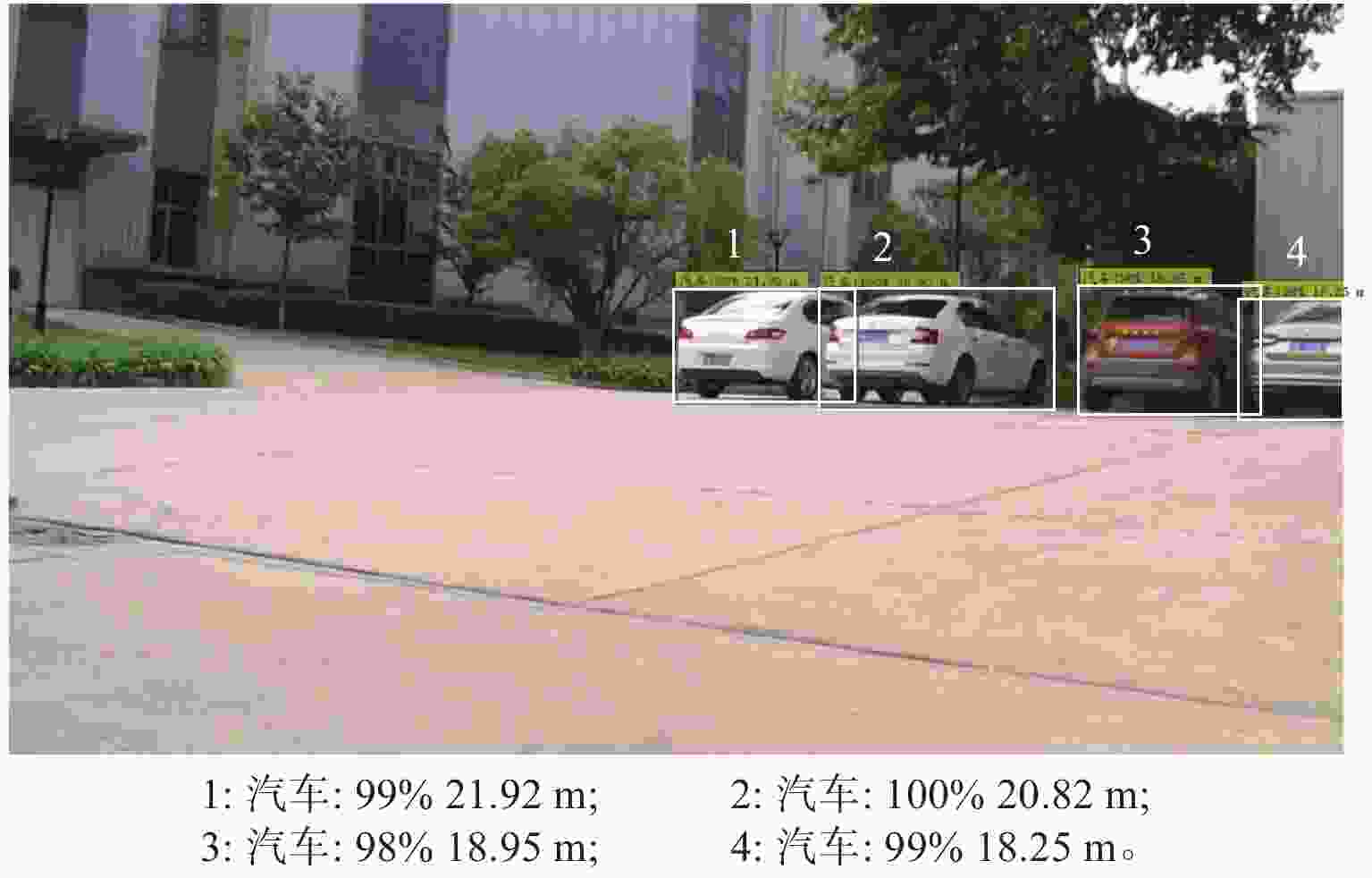

图 5 双目测量系统测试效果

Fig. 5 Detection effect of binocular measurement system

下载: 全尺寸图片幻灯片

表 1 双目视觉测量系统检测结果分析

Table 1 Detection results analysis of binocular vision measurement system

真实目标距离/m	目标数	检出目标数	成功测距数	测距正确数	平均测距误差/%
5～15	7 308	7 108	6 845	6 257	7.9
15～25	7 464	7 014	6 727	6 219	5.1
25～40	7 836	7 175	6 934	6 626	4.8
40～80	4 214	3 820	3 674	3 591	5.8
80～120	2 127	1 825	1 751	1 693	6.4

下载: 导出CSV

表 2 本文算法与其它算法对15 m～80 m目标的测量结果比较

Table 2 Detection results comparison of 15 m~80 m targets with proposed algorithm and other algorithms

算法	检出率/%	测距误差/%	运行帧率/（帧/s）
本文算法	92.3	5.2	21
GC-Net	93.1	5.9	1.1
GANet	93.5	5.2	10.2
PSMNet	93.9	4.8	2.4
Monodepth	92.9	6.9	15

下载: 导出CSV

表 3 双目测量系统测试结果分析

Table 3 Detection results analysis of binocular measurement system

目标序号	目标真实距离/m	输出概率值	测距值/m	测距误差/%
1	18.94	0.99	18.25	3.64
2	19.81	0.98	18.95	4.34
3	21.18	1.00	20.82	1.70
4	22.56	0.99	21.92	2.84

下载: 导出CSV
